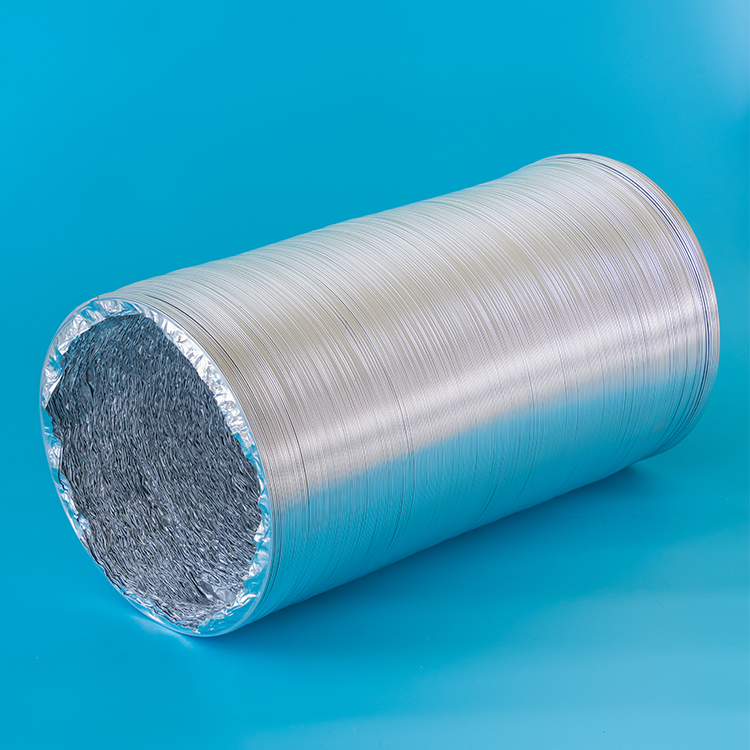

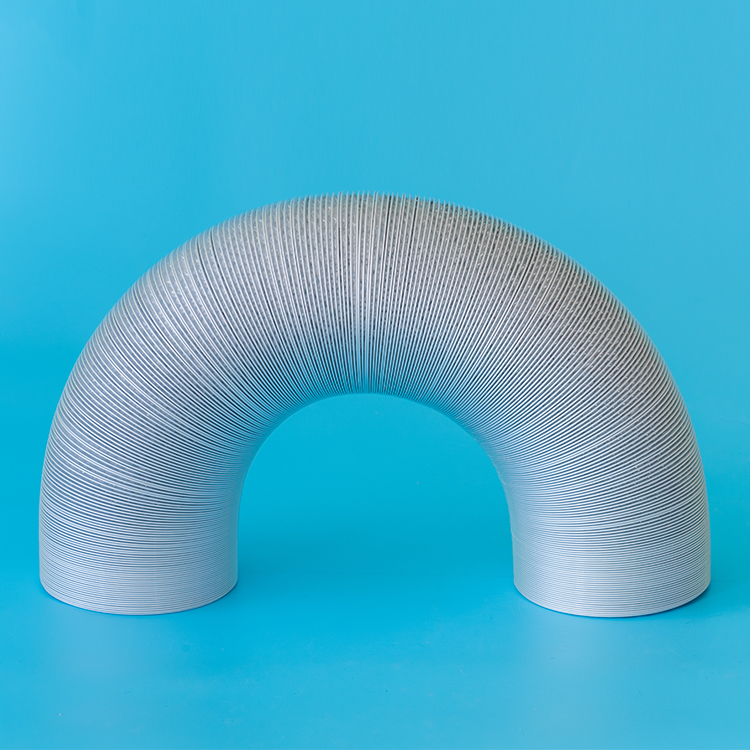

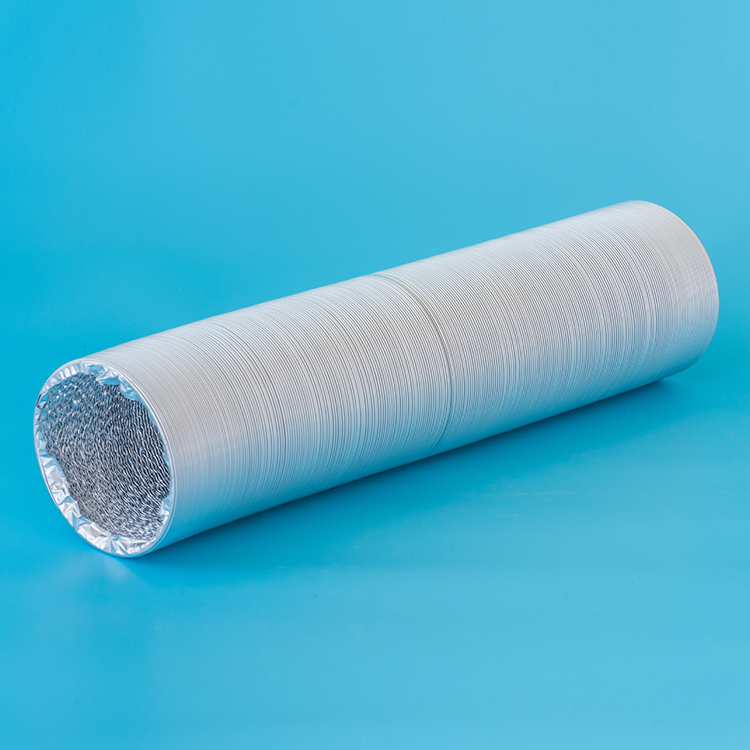

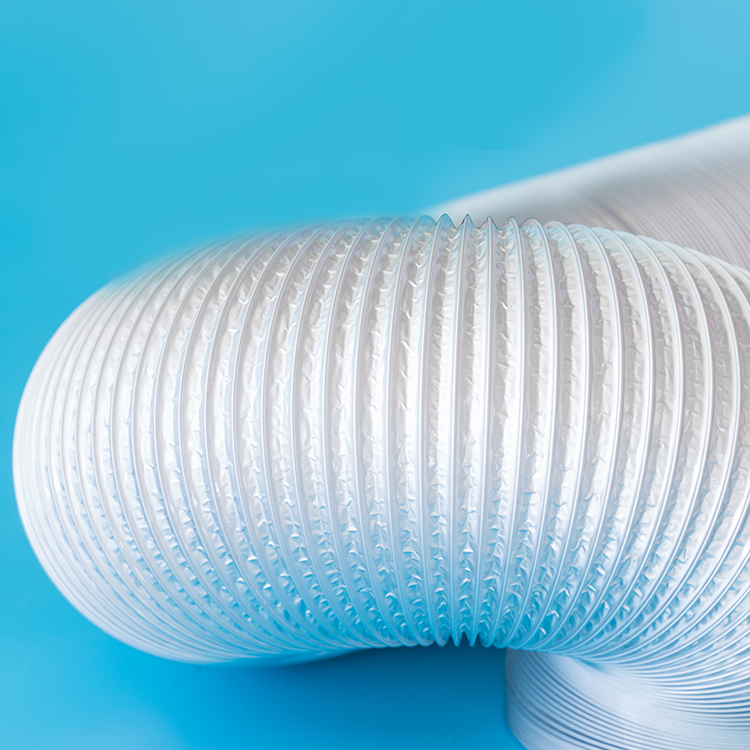

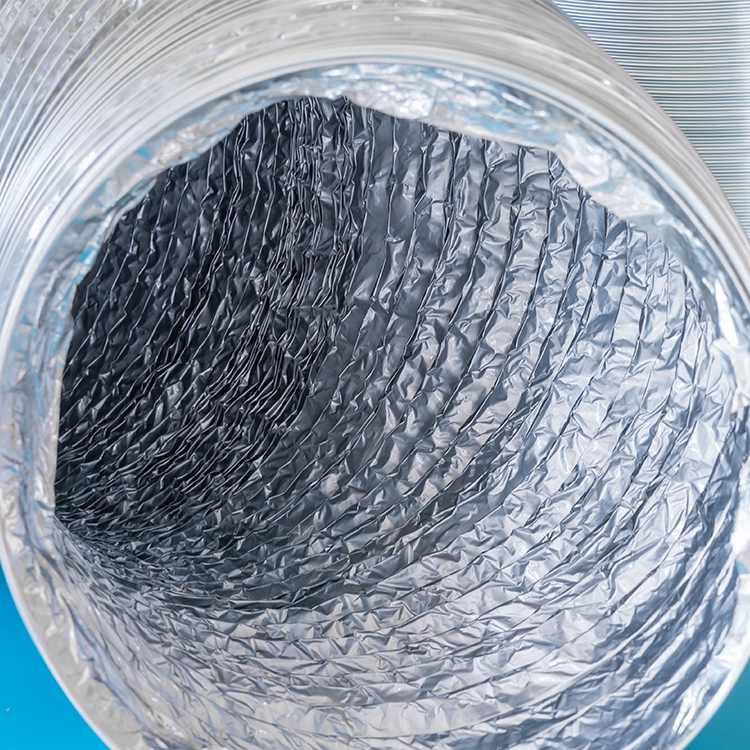

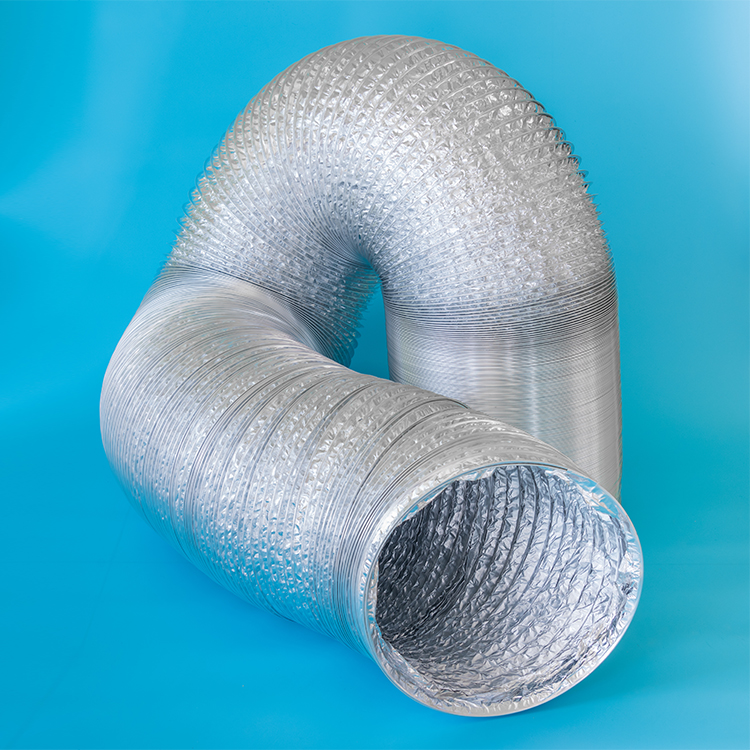

Double PET Aluminum Flexible Duct
雙塑鋁箔軟管
|
Product Code |
XY-110 |
產品編碼 |
XY-110 |
|
Construction |
1 Aluminum Foil + 2 PET |
材料 |
1層鋁箔+2層PET |
|
Color |
Silver |
顏色 |
銀色 |
|
AvailableDiameter |
40mm-650mm (1.5"-25") |
直徑范圍 |
40mm-650mm (1.5"-25") |
|
Carbon Steel Wire Diameter |
0.6mm-2.5mm |
鋼絲直徑 |
0.6mm-2.5mm |
|
StandardLength |
10m(Max) |
標準長度 |
10m(Max) |
|
Thickness |
At Least 0.17mm |
厚度 |
最少0.17mm |
|
Fire Resistance |
Class A2(Max) |
防火等級 |
A2級，難燃 |
|
CompressRatio |
1: 15 |
壓縮比 |
1：15 |
|
Temperature Range |
-30℃/+150℃ |
溫度范圍 |
-30℃/+150℃ |
|
Operating Pressure |
3000Pa |
最大壓力 |
3000Pa |
|
Maximum Air Velocity |
最大風速 |
30m/s |
鋁箔伸縮軟管采用積層鋁箔復合膜繞帖高彈性螺旋形強韌鋼絲制作而成。
拉直后自持性好、風阻小、清潔衛生，遇到高溫或火警時，不產生有毒氣體，適用于高、中、低壓的空調及通風系統，安裝便捷。
Made of spiral steel wire laminated with aluminum/polyester foil.
Self-holding during usage and low wind resistance.
No toxic gases release at high temperature or in the case of fire alarm.
Ideal for using in general purpose exhaust applications.
