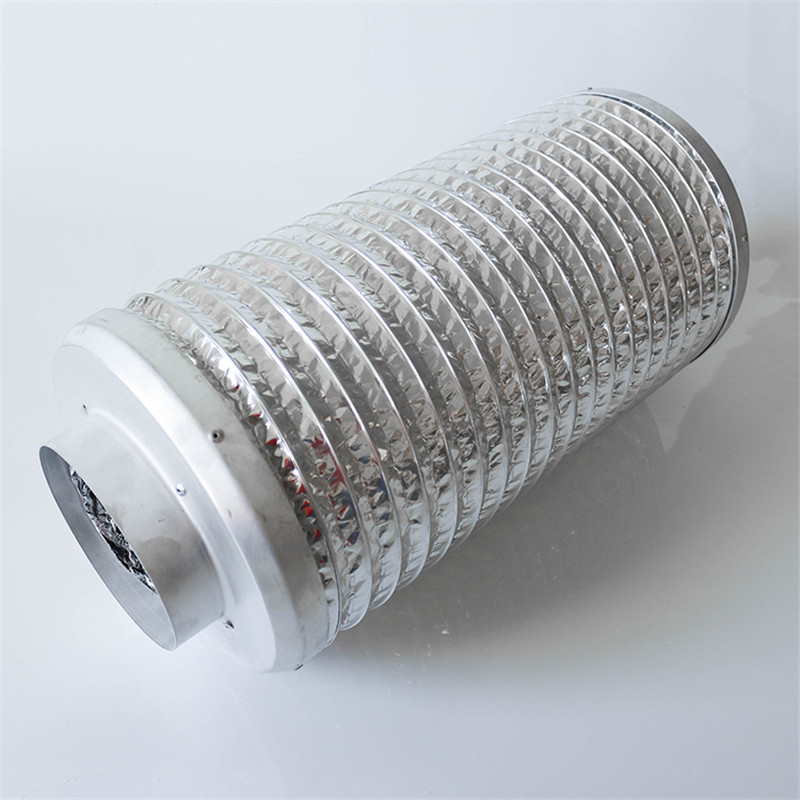

Product Code

XY-703

Construction

(From outside to inside)

Sleeve

Aluminum Flexible Duct / Combi PVC Duct

Polyester

Material

Black Polyester

Gram Weight

800g/m2

Thickness

50mm

Inner Duct

Material

Non-Woven Cloth With Reinforced Plastic Wire

Diameter

100mm-350mm

(4"-14")

Length

2m(Max)

Fire Resistance

Class A2

Temperature Range

-30℃/+150℃

Operating Pressure

3000Pa

Maximum Air Velocity

30m/s

產品編號

XY-703

結構（由外到內）

外套

鋁箔單管/ 復合PVC 管

無紡棉

材質

黑色無紡棉

克重

800g/m2

厚度

50mm

內管

材質

夾布無紡布管

內徑

100mm-350mm

(4"-14")

標準長度

2m(Max)

阻燃級別

B1級，阻燃

溫度范圍

-30℃/+150℃

最大壓力

3000Pa

最大風速

30m/s
