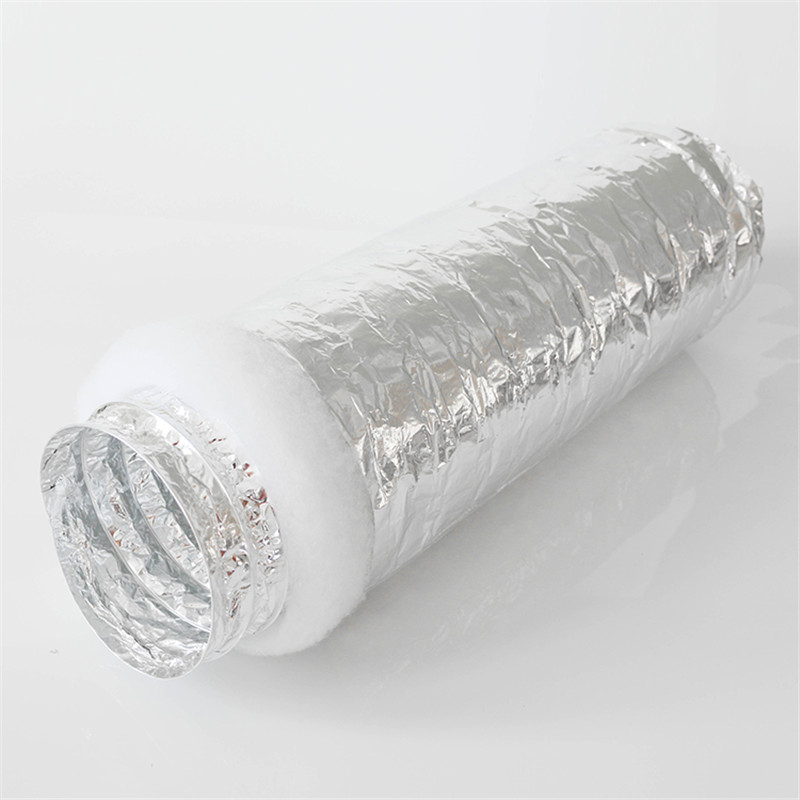

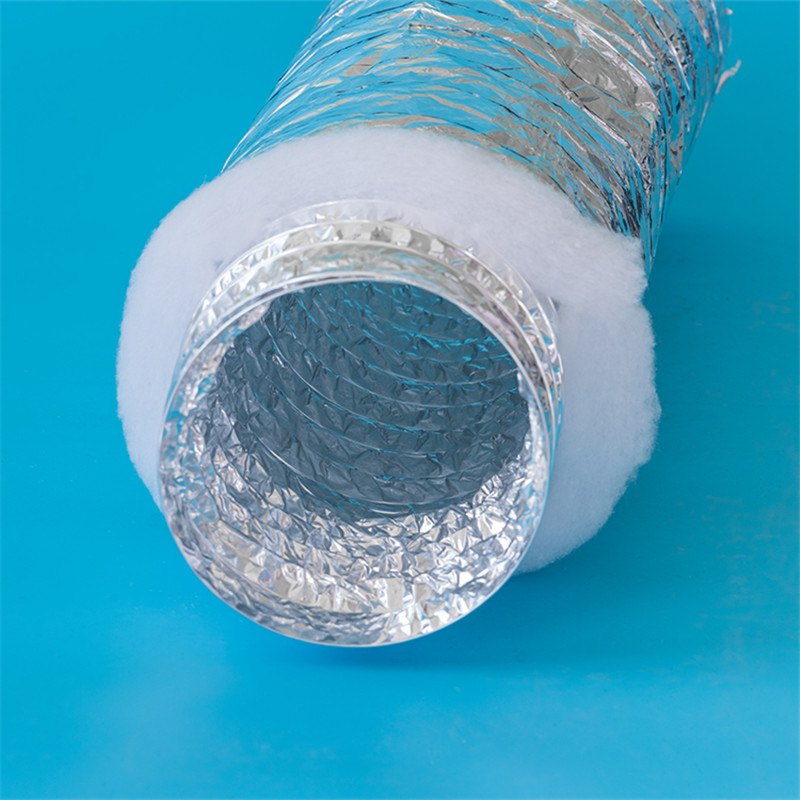

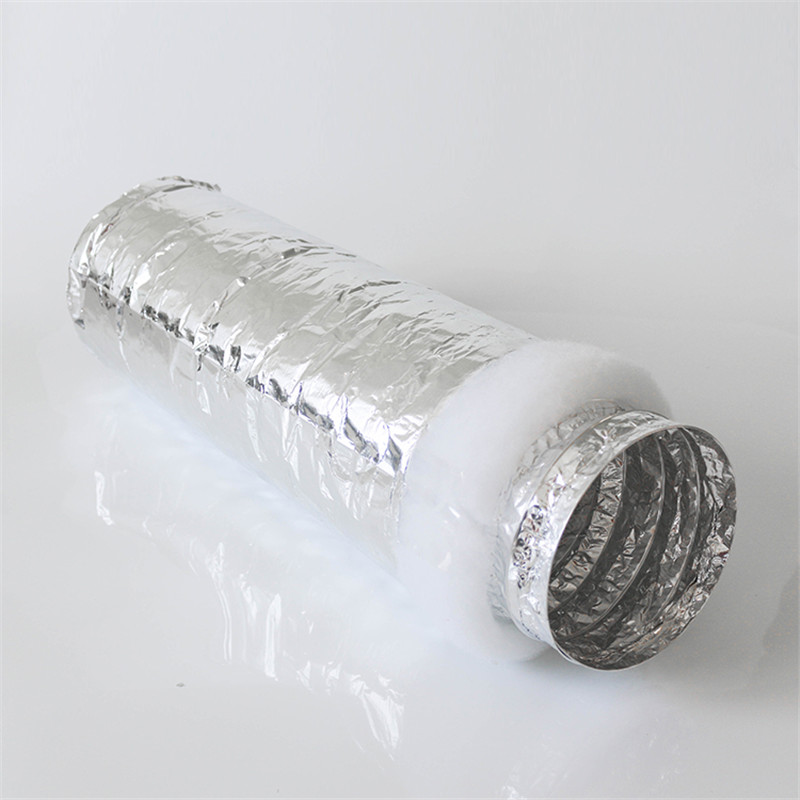

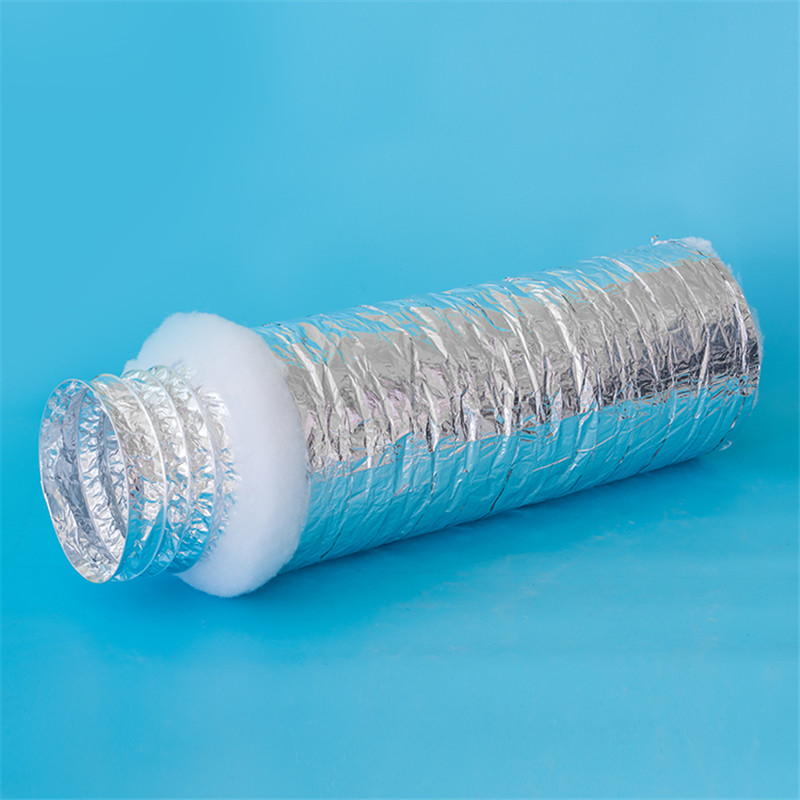

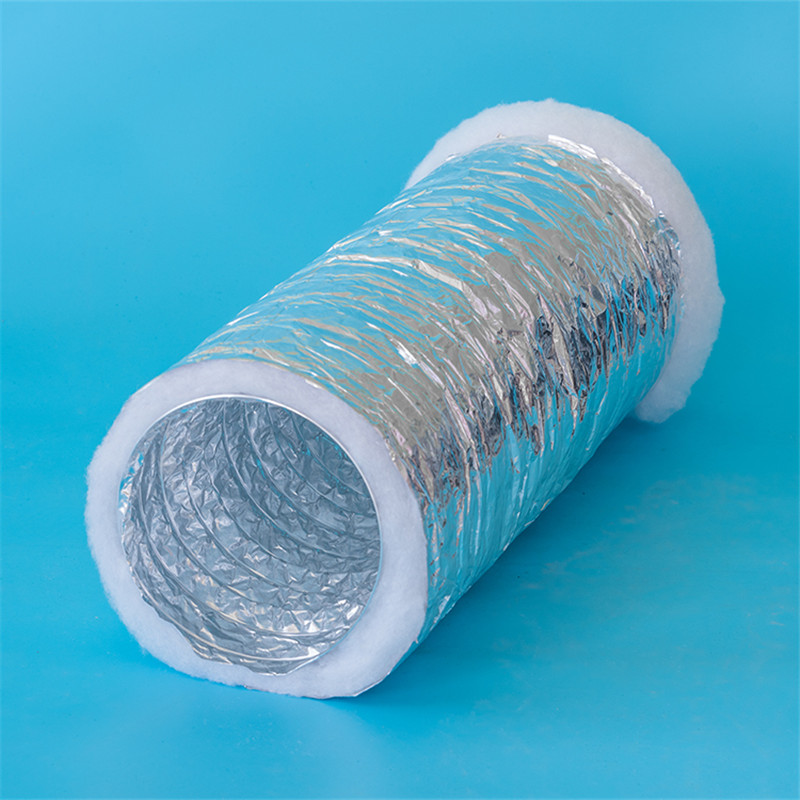

Polyester Insulation Flexible Duct
無紡棉保溫軟管（鋁箔內管+鋁箔外套）
|
Product Code |
XY-606 |
||
|
Construction (From outside to inside) |
Sleeve |
Single LayerAluminum foil |
|
|
Polyester |
Gram Weight |
100g/m2-750g/m2 |
|
|
Thickness |
25mm / 30mm |
||
|
Inner Duct |
Material |
Aluminum Duct |
|
|
Diameter |
50mm-650mm (2"-25") |
||
|
Carbon Steel Wire Diameter |
0.6mm-2.5mm |
||
|
Length |
10m(Max) |
||
|
Thermal Insulation |
R0.4-R3.0 |
||
|
Fire Resistance |
ClassA2(Max) |
||
|
CompressRatio |
1: 10 |
||
|
Temperature Range |
-30℃/+150℃ |
||
|
Operating Pressure |
3000Pa |
||
|
Maximum Air Velocity |
30m/s |
||
|
產品編碼 |
XY-606 |
||
|
構成（由外到內） |
外套 |
單層鋁箔 |
|
|
無紡棉 |
克重 |
100g/m2-750g/m2 |
|
|
厚度 |
25mm / 30mm |
||
|
內管 |
材質 |
鋁箔軟管 |
|
|
口徑 |
50mm-650mm (2"-25") |
||
|
鋼絲直徑范圍 |
0.9mm-1.3mm |
||
|
長度 |
10m(Max) |
||
|
保溫系數 |
R0.4-R3.0 |
||
|
防火等級 |
A2級，難燃 |
||
|
壓縮比 |
10 : 1 |
||
|
耐溫范圍 |
-30℃/+150℃ |
||
|
最大壓力 |
3000Pa |
||
|
最大風速 |
30m/s |
||
