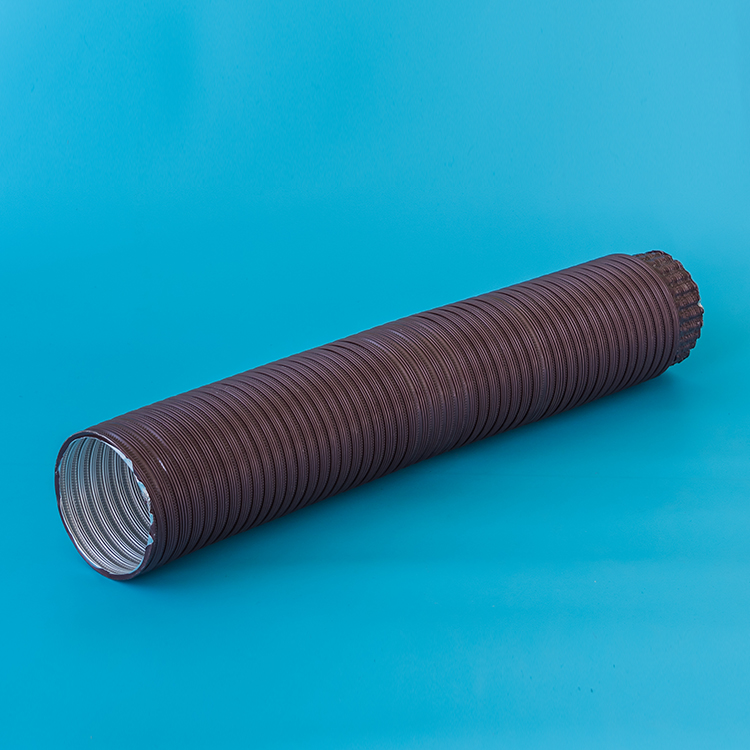

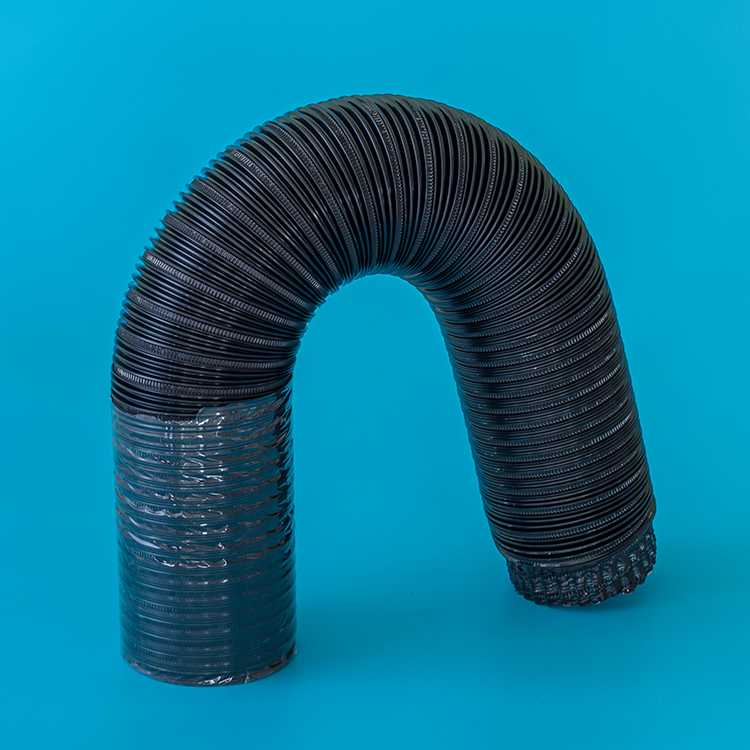

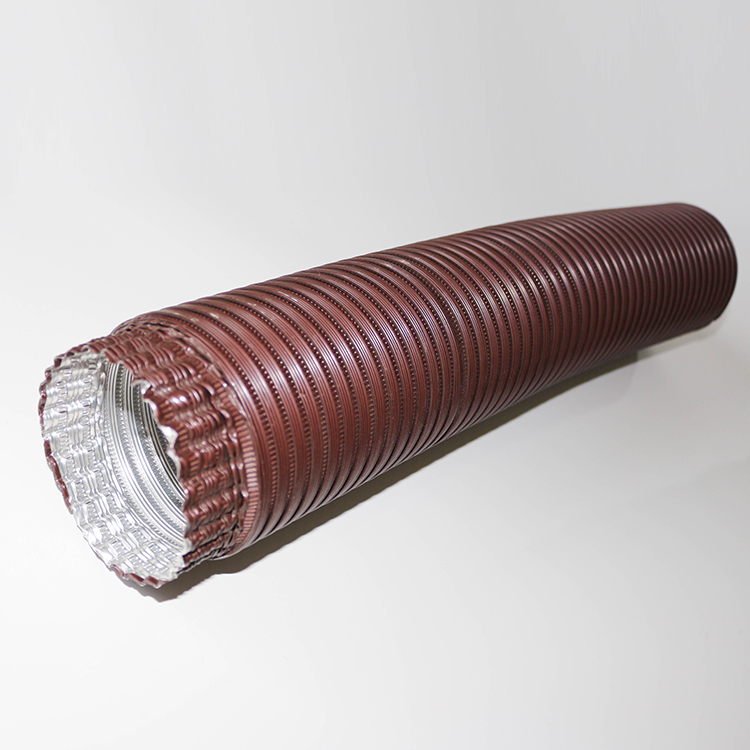

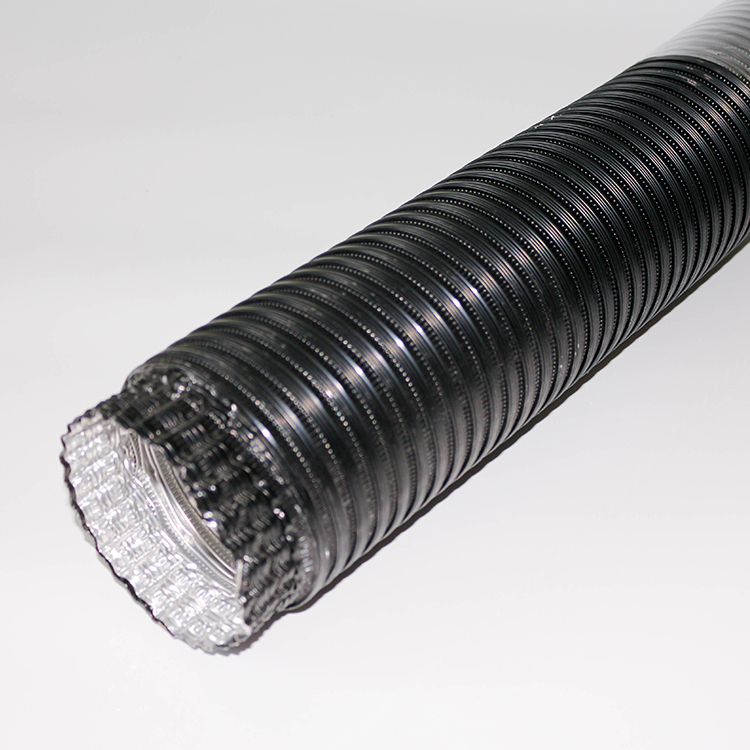

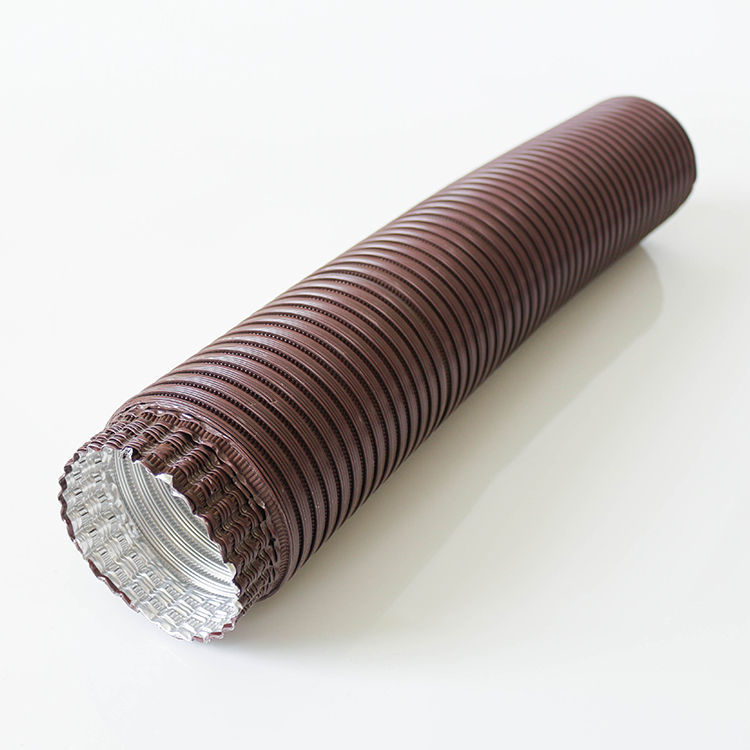

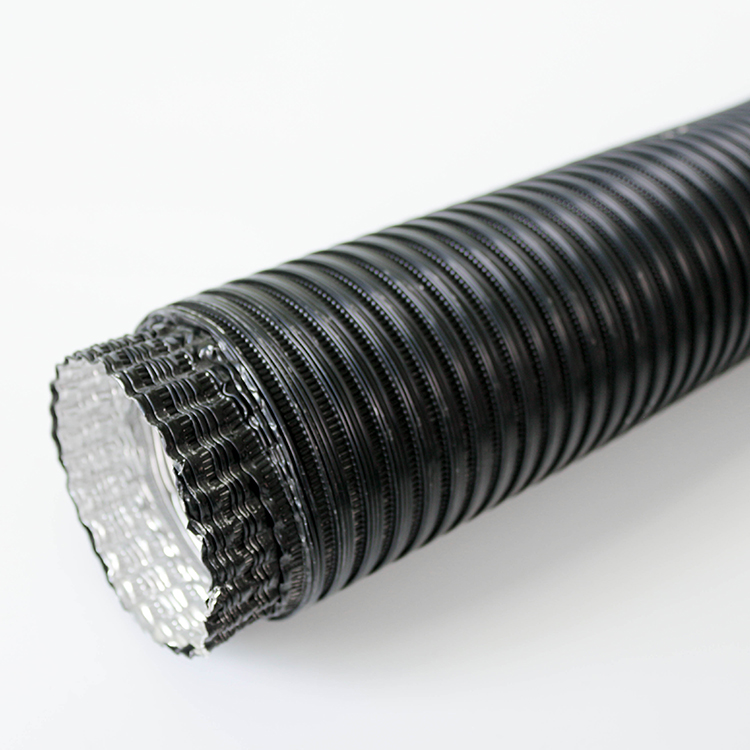

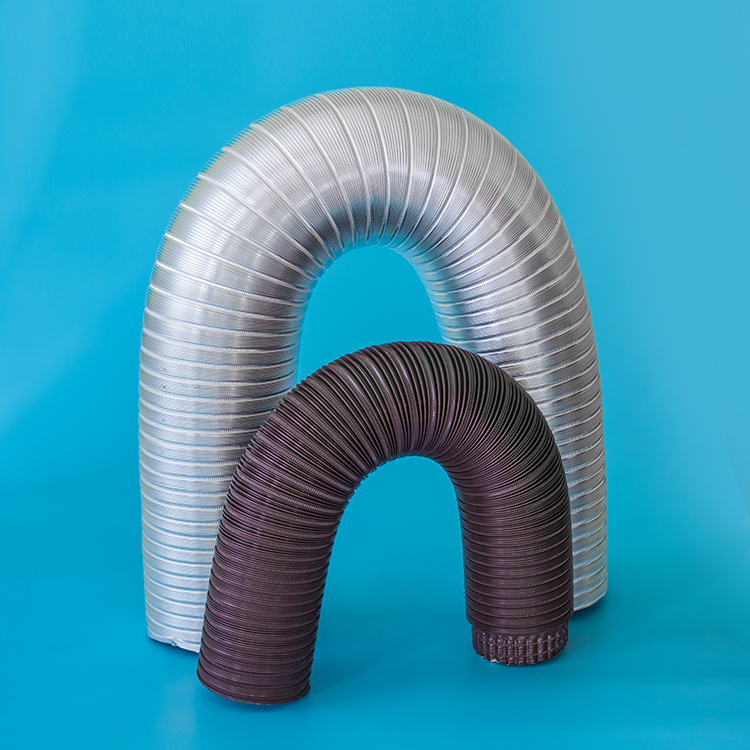

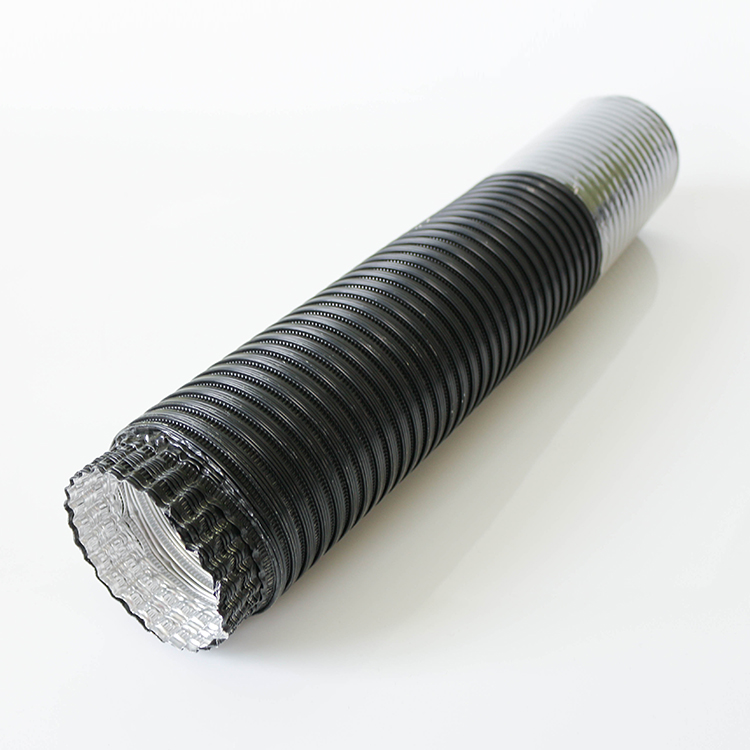

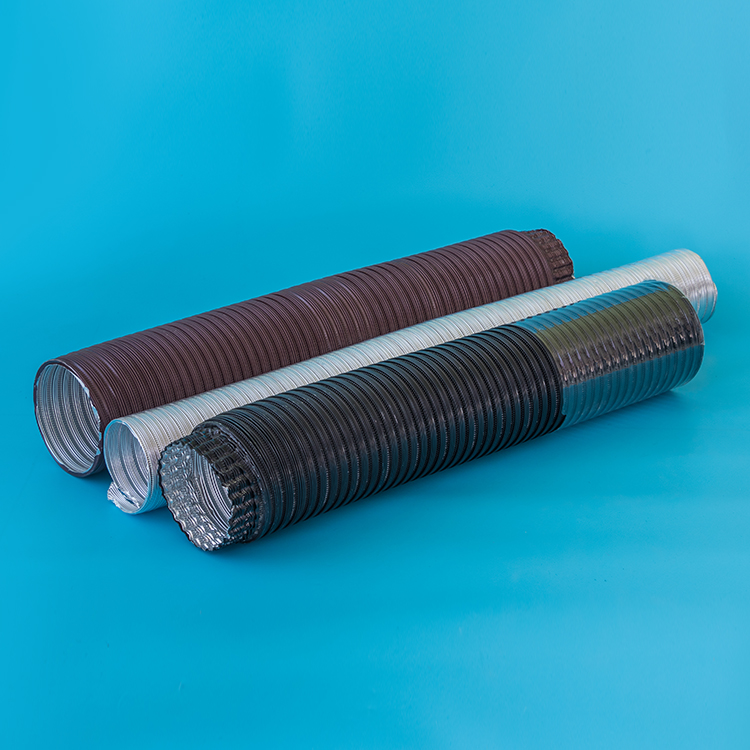

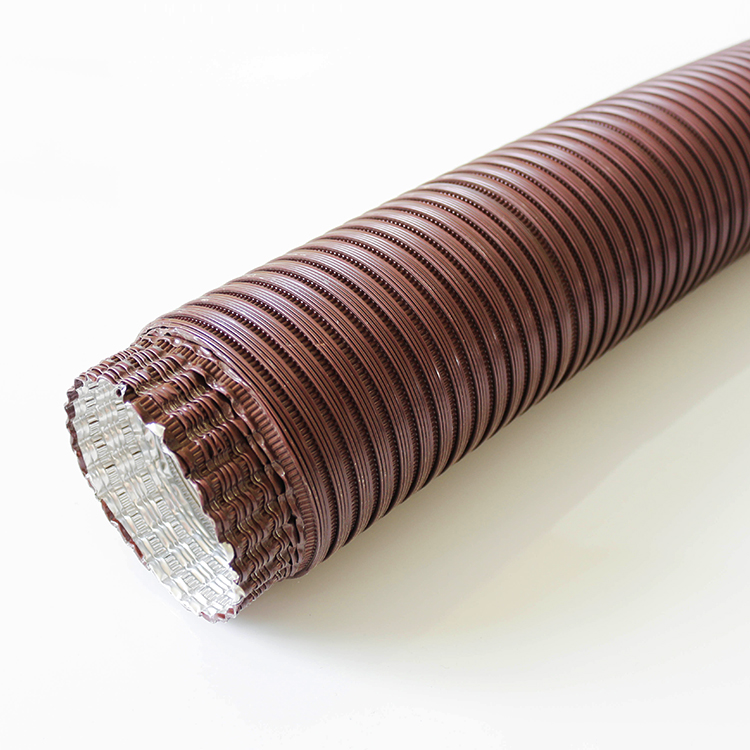

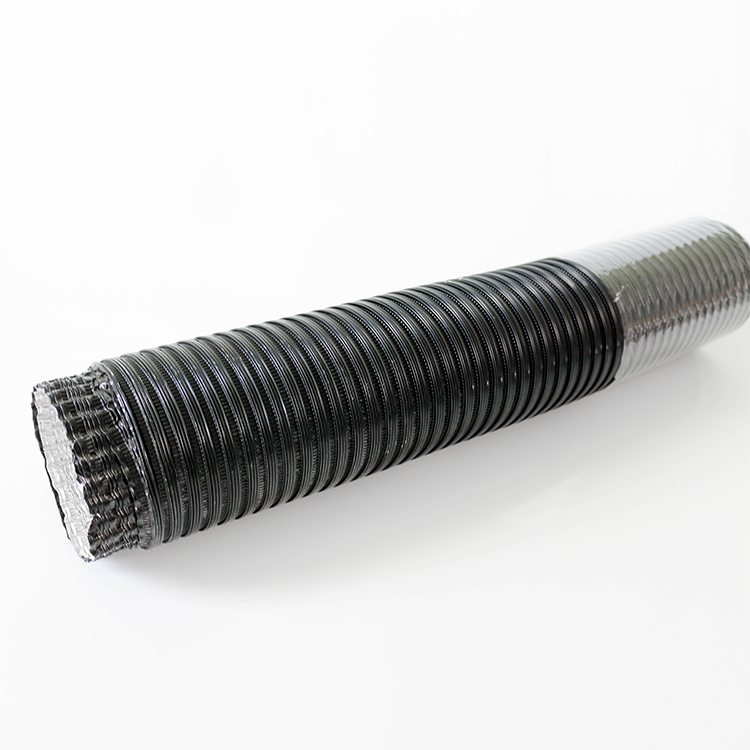

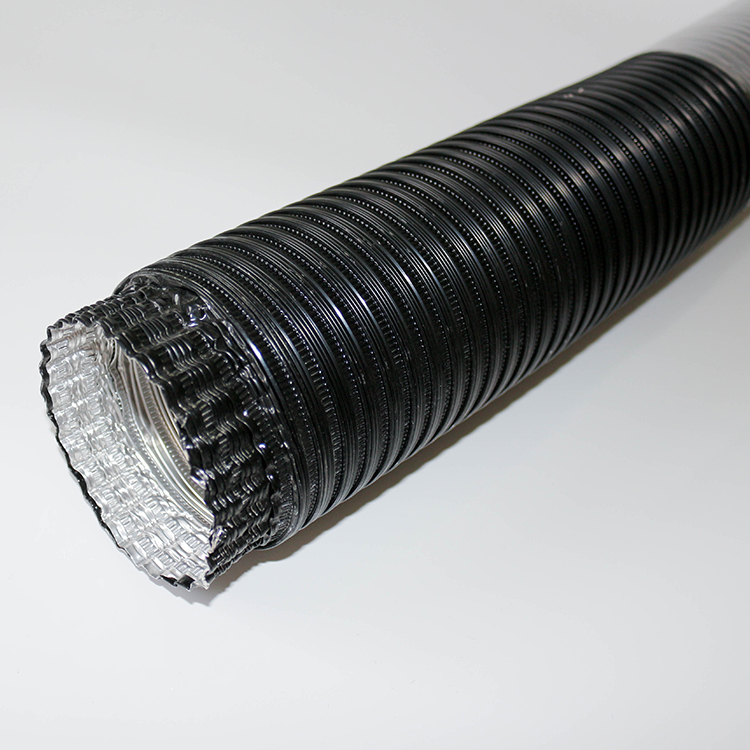

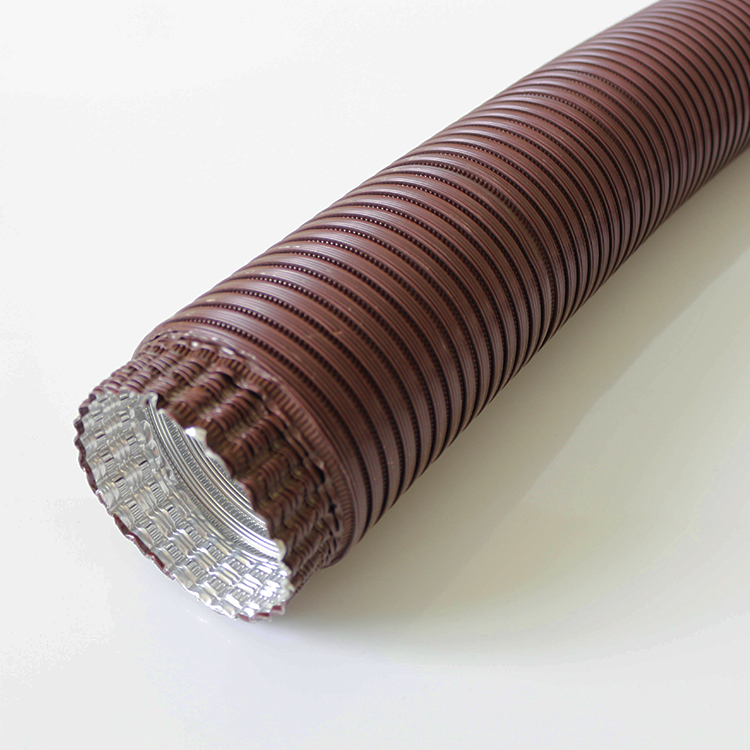

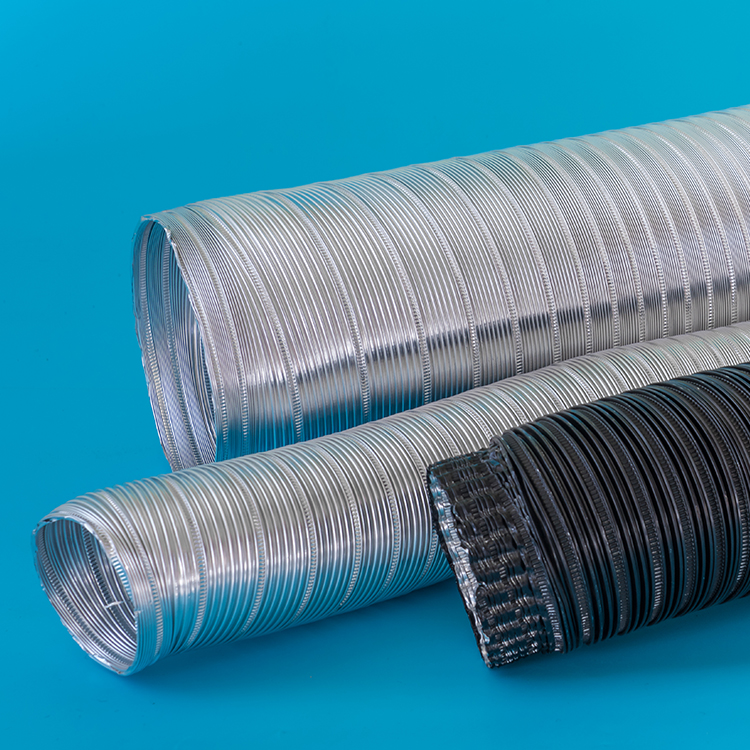

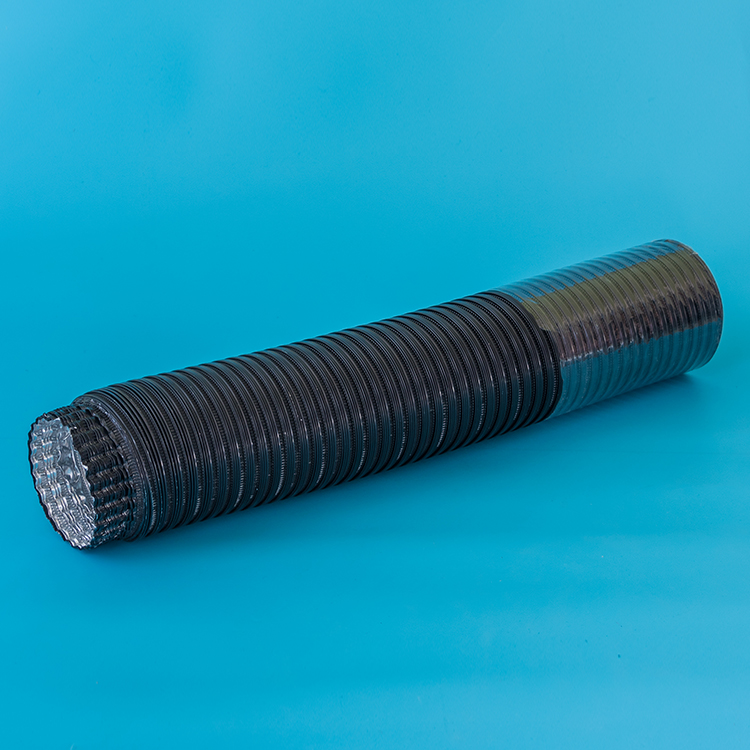

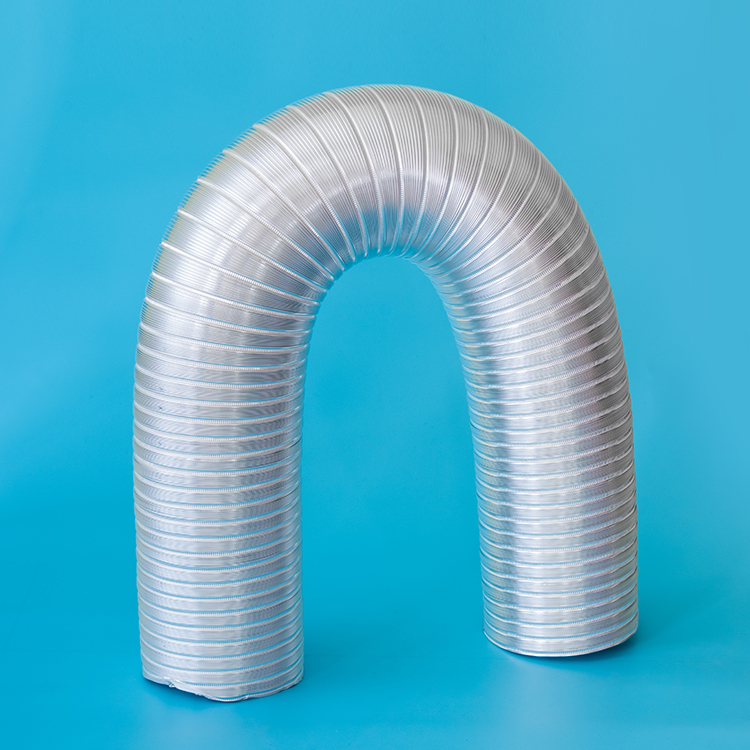

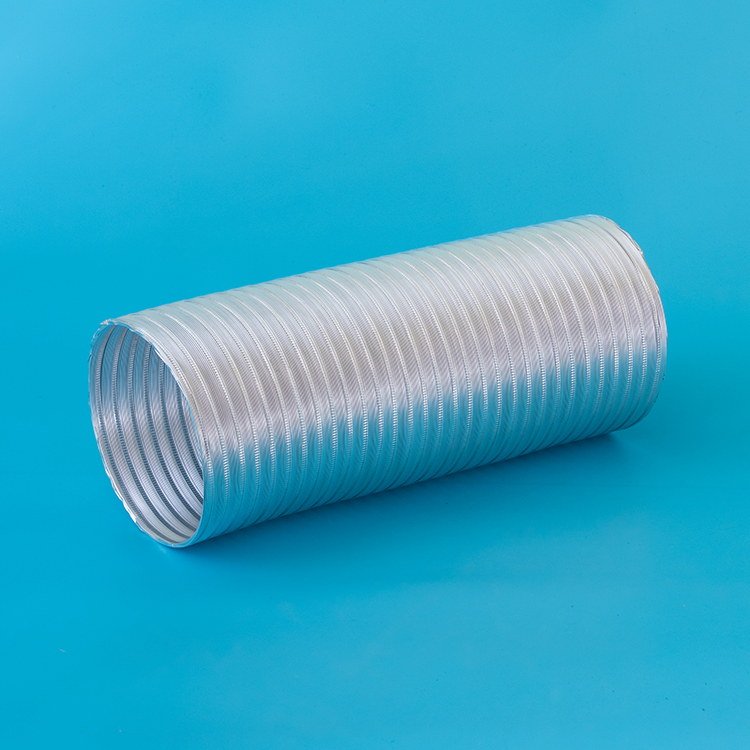

Semi-rigid Aluminum Flexible Duct
鋁制波紋管
|
Product Code |
XY-301 |
產品編碼 |
XY-301 |
|
Construction |
Aluminum foil |
材料 |
純鋁 |
|

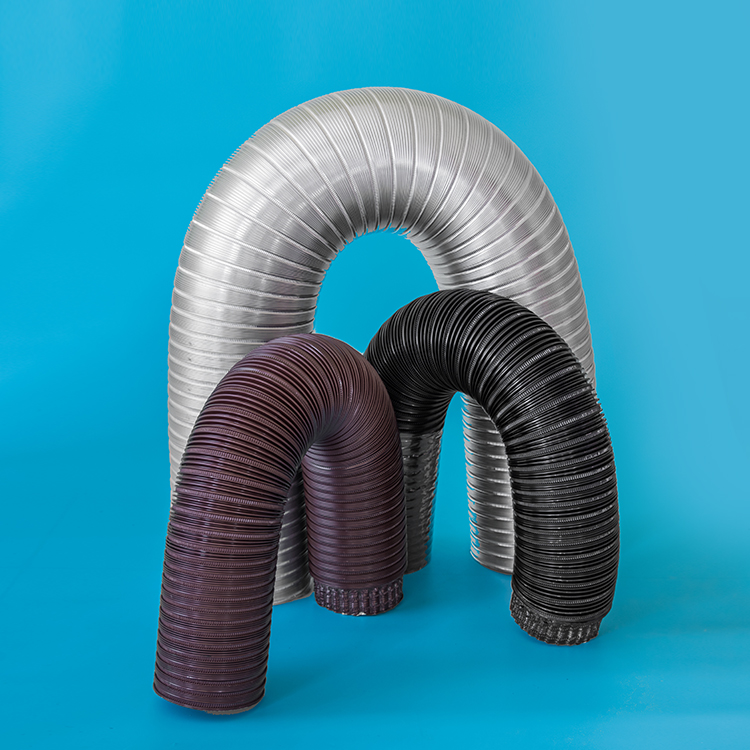

Color |
Silver/black/brown/ Grey/Milk White |
顏色 |
銀色/黑色/棕色/灰色/奶白色 |
|
AvailableDiameter |
45mm-300mm (1.8"-12") |
直徑范圍 |
45mm-300mm (1.8"-12") |
|
StandardLength |
6m(Max) |
標準長度 |
6m(Max) |
|
Thickness |
-0.20mm |
厚度 |
0.08mm,0.09mm -0.20mm |
|
Fire Resistance |
Class A2(Max) |
防火等級 |
A2級，難燃 |
|
Goffer Numbers |
4,7,9 |
螺紋數 |
4,7,9 |
|
Duct Shape |
Round/Rectangle |
軟管形狀 |
圓形/矩形 |
|
End Shape |
Female/Male |
管口形狀 |
不帶咬口/帶咬口 |
|
CompressRatio |
1:3 |
壓縮比 |
1:3 |
|
Temperature Range |
-30℃/+300℃ |
溫度范圍 |
-30℃/+300℃ |
|
Operating Pressure |
3000Pa |
最大壓力 |
3000Pa |
|
Maximum Air Velocity |
最大風速 |
30m/s |
鋁制波紋管是由厚度為0.08mm-0.20mm的純鋁箔直接壓制而成，可伸縮，可塑性強，適用于熱水器、油煙機等排污排風用。
Semi-rigid aluminum flexible duct is made by aluminum foil from thickness 0.08mm-0.20mm, it is flexible and easy to install. Suitable for range hoods,laundries, dryer vent, toilets, bathrooms.
