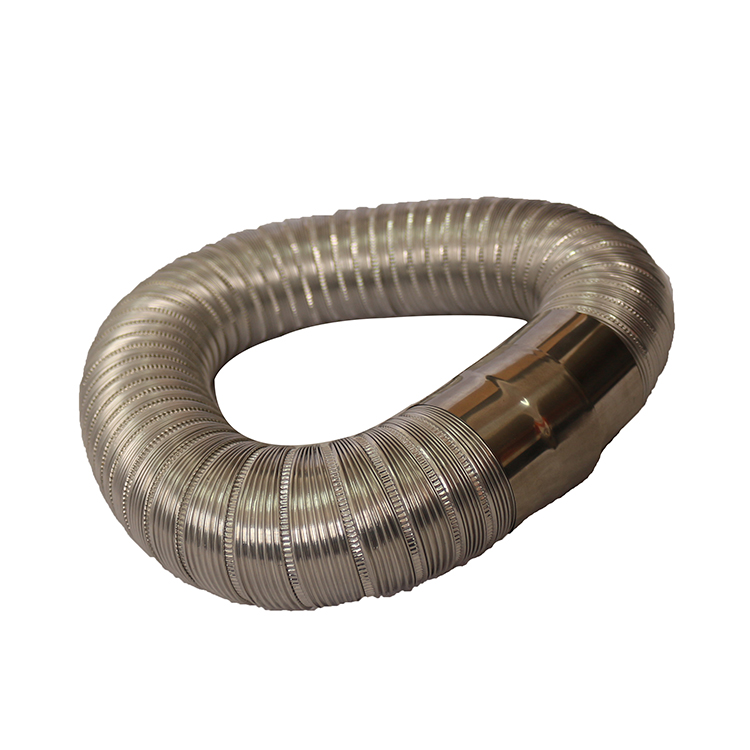

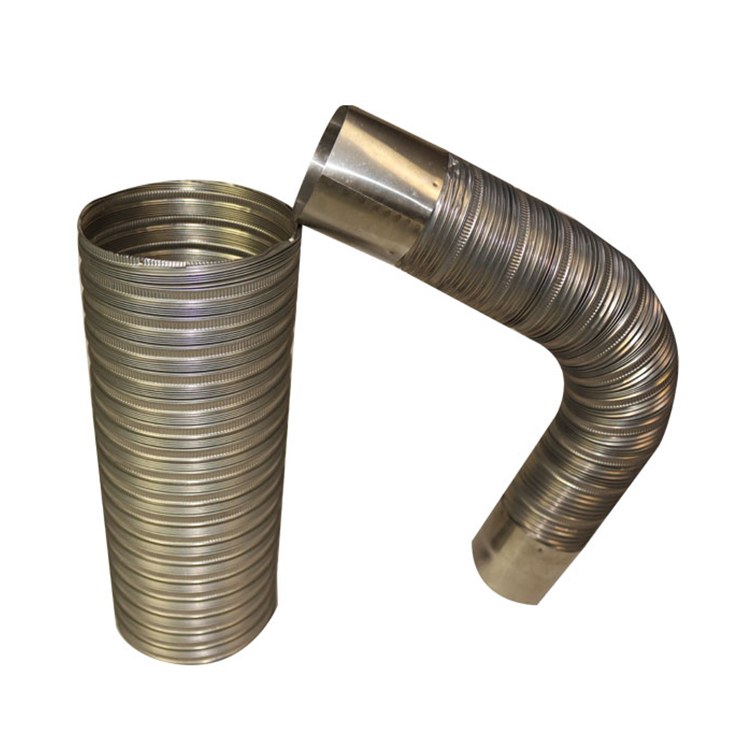

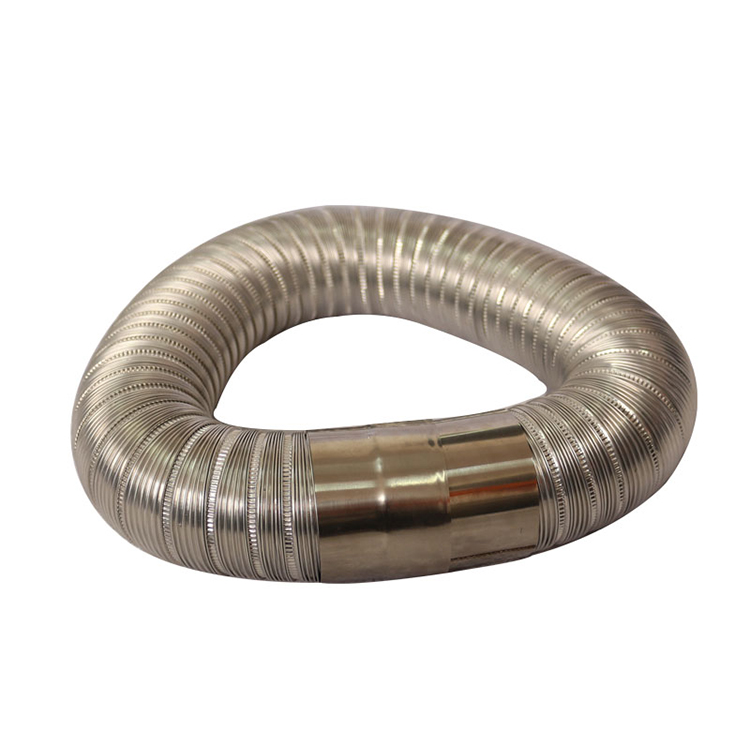

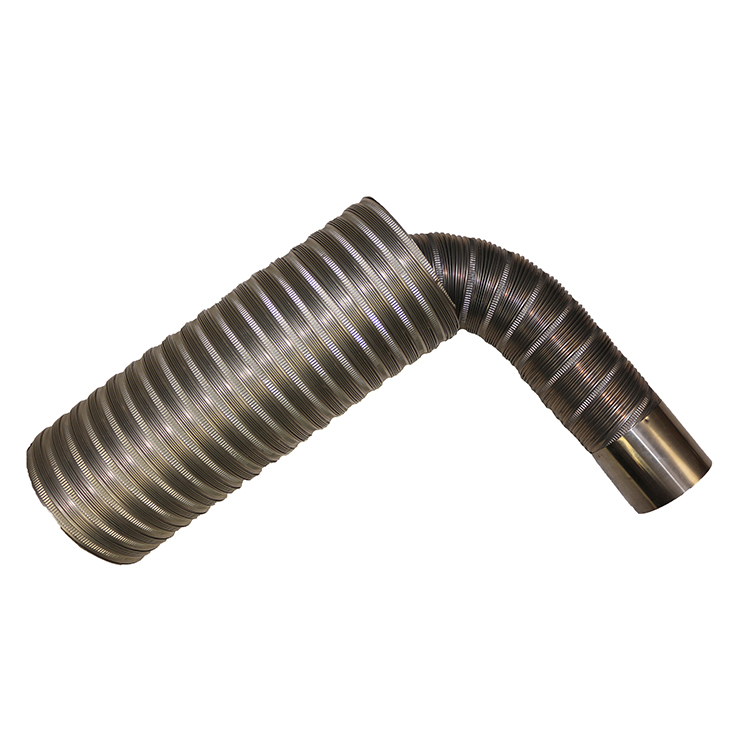

Semi-rigid Stainless Steel Flexible Duct
不銹鋼波紋管
|
Product Code |
XY-302 |
產品編碼 |
XY-302 |
|
Construction |
Stainless steel 304/316/316L |
材料 |
不銹鋼304/316/316L |
|
AvailableDiameter |
45mm-300mm (1.8"-12") |
直徑范圍 |
45mm-300mm (1.8"-12") |
|
StandardLength |
4m(Max) |
標準長度 |
4m(Max) |
|
Thickness |
0.1mm |
厚度 |
0.1mm |
|
Fire Resistance |
Class A2(Max) |
防火等級 |
A2級，難燃 |
|
Goffer Numbers |
4/7 |
螺紋數 |
4/7 |
|
CompressRatio |
Can not be compressed |
壓縮比 |
不可壓縮 |
|
Temperature Range |
-30℃/+400℃ |
溫度范圍 |
-30℃/+400℃ |
|
Operating Pressure |
3000Pa |
最大壓力 |
3000Pa |
|
Maximum Air Velocity |
最大風速 |
30m/s |
不銹鋼波紋管是由厚度為0.1mm的不銹鋼304材質直接壓制而成，可塑性強，適用于熱水器、油煙機等排污排風用。
Semi-rigid stainless steel flexible duct is made by stainless steel 304 material, thickness is 0.1mm, it is easy to install. Suitable for range hoods,laundries, dryer vent, toilets, bathrooms.
