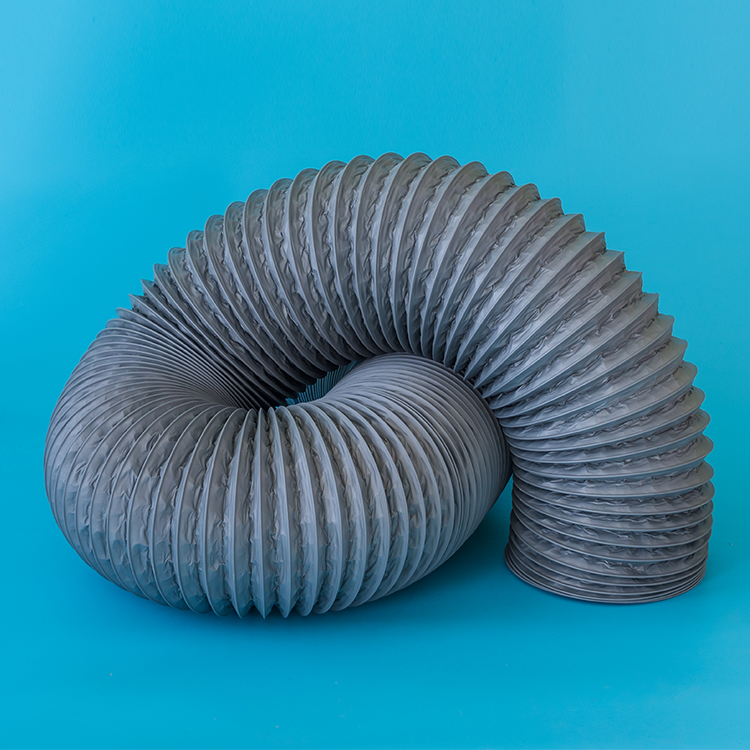

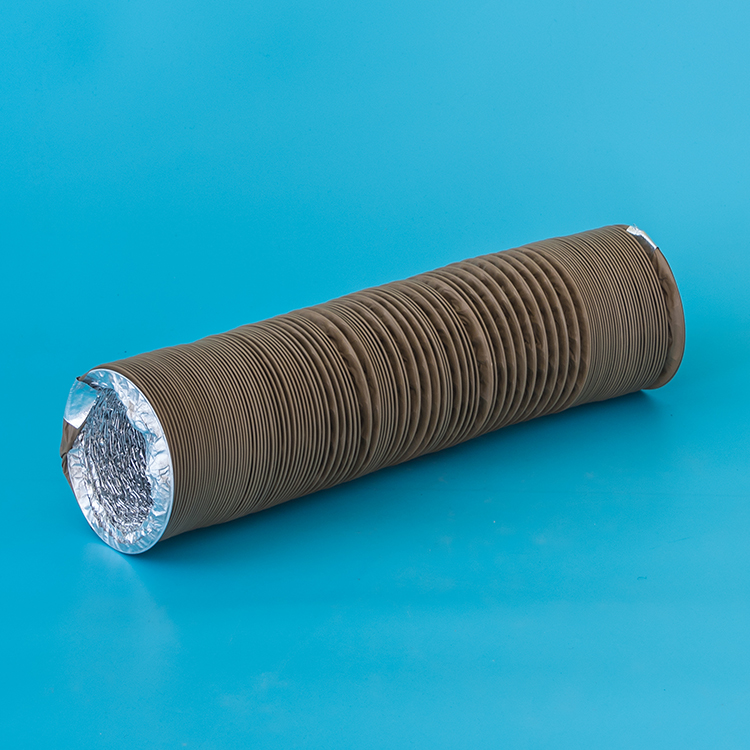

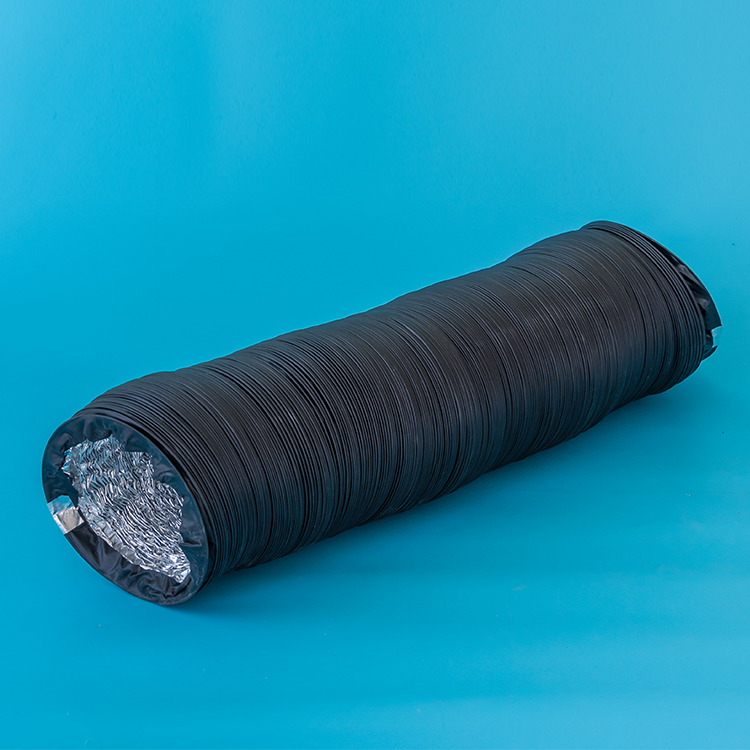

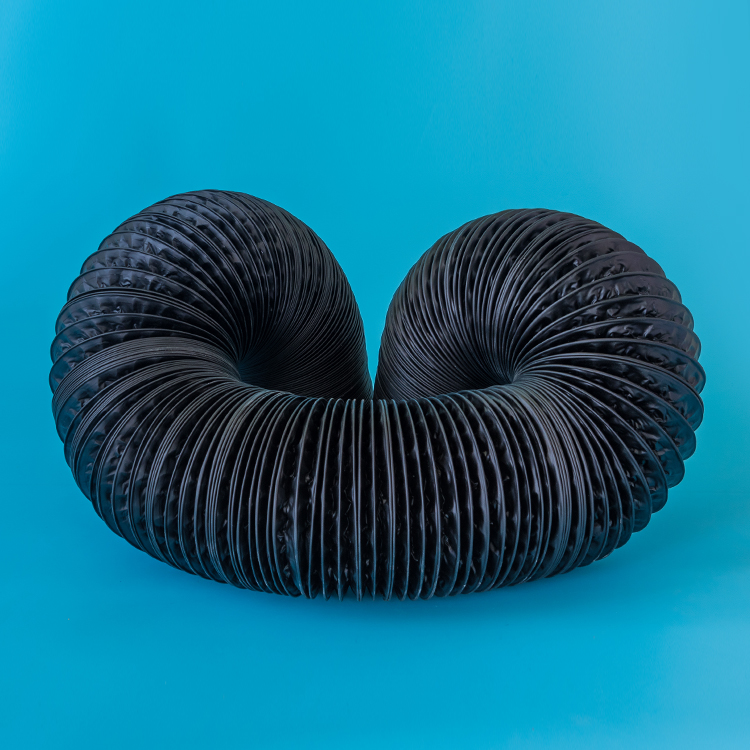

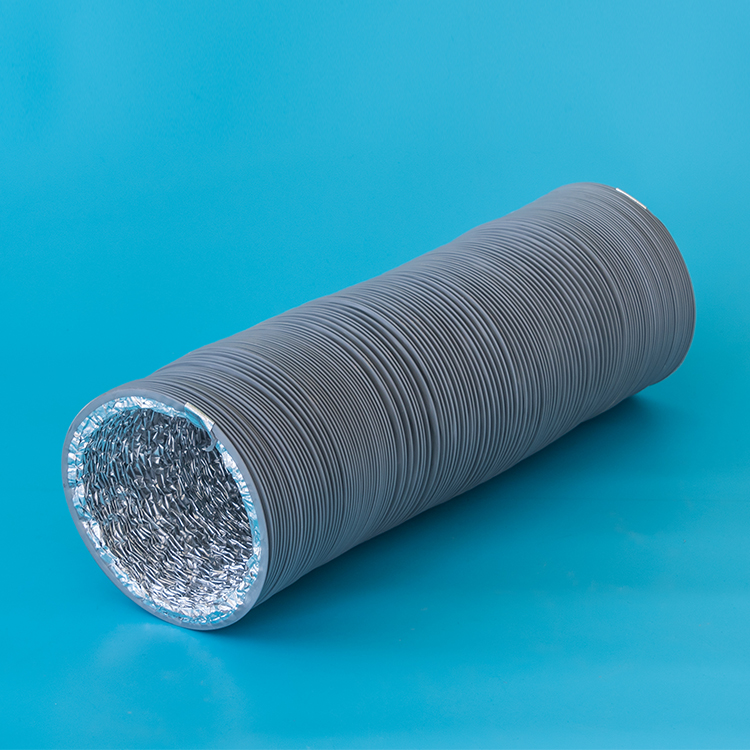

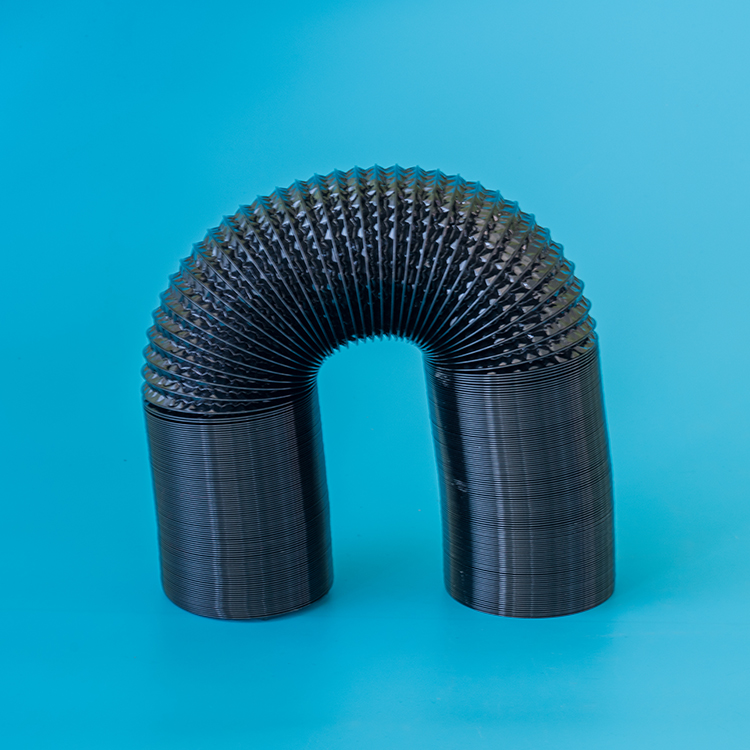

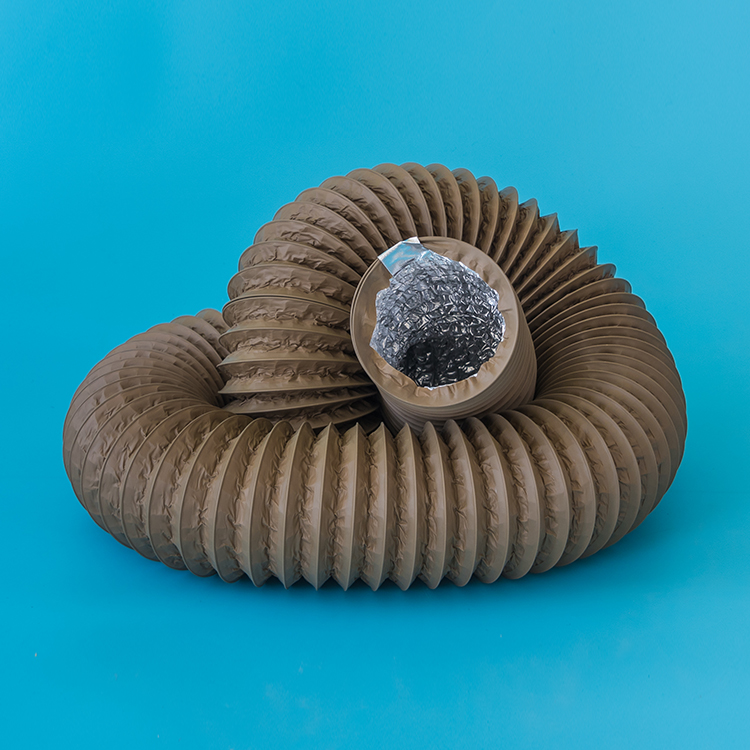

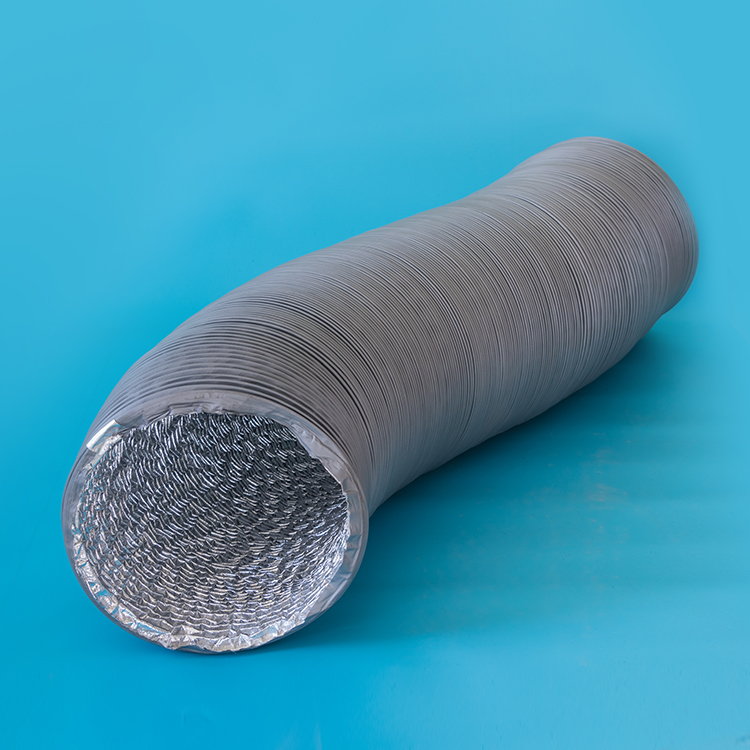

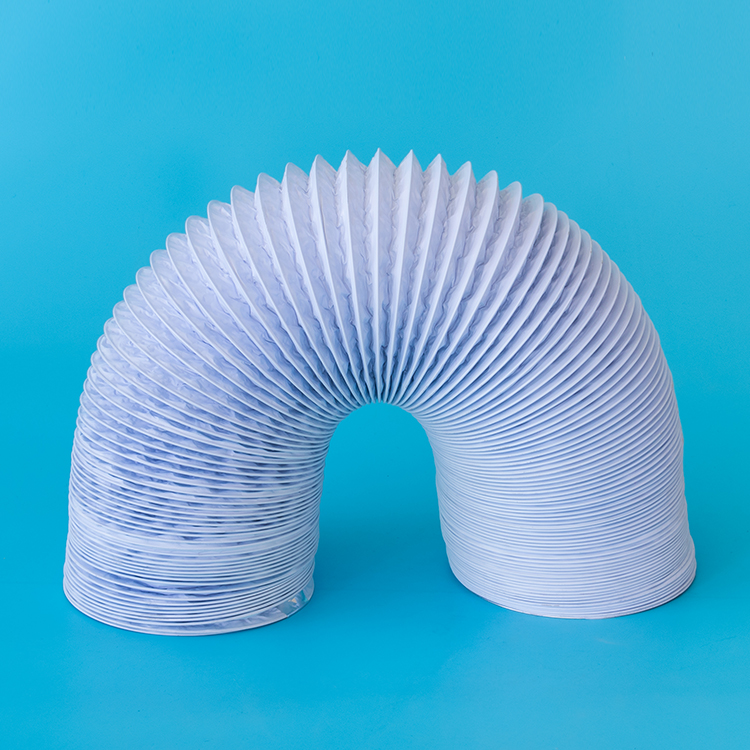

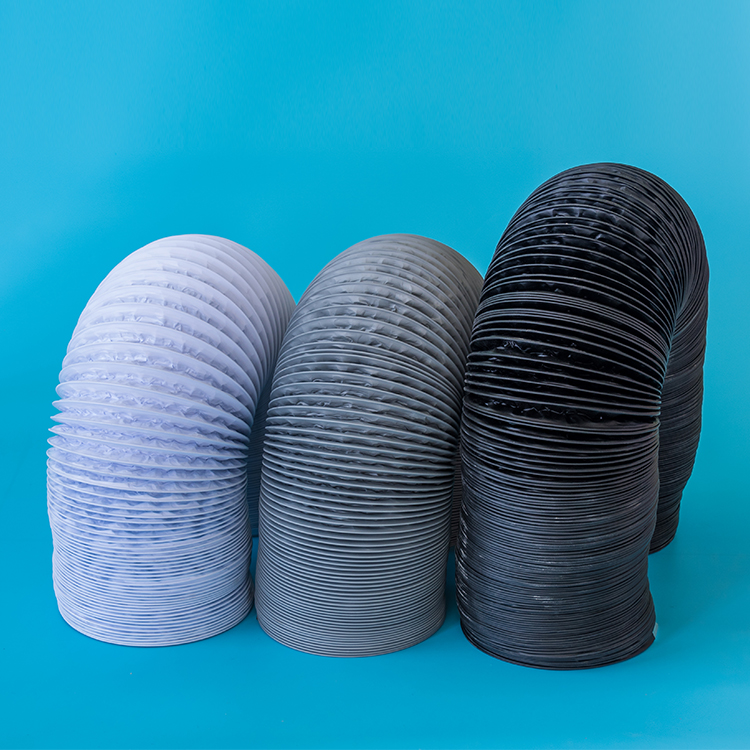

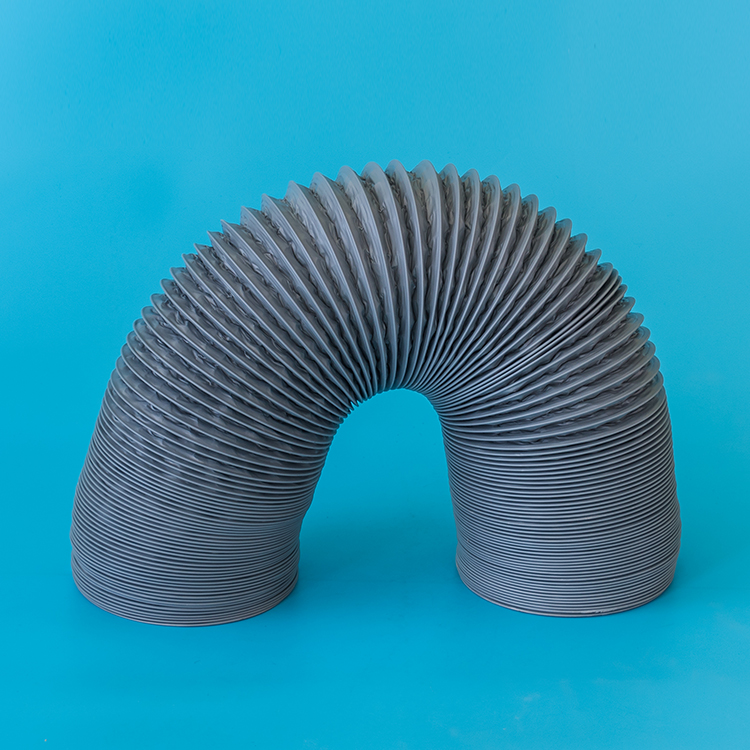

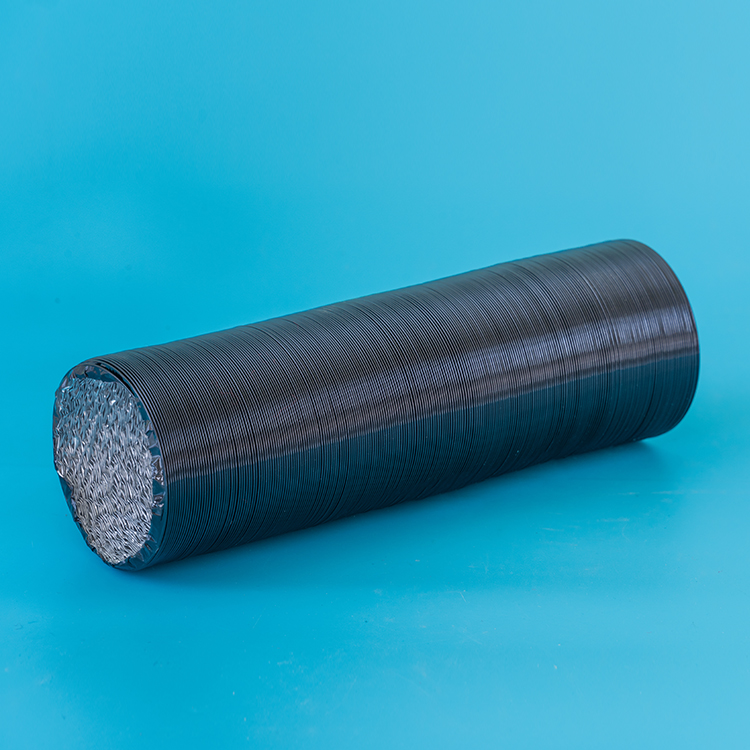

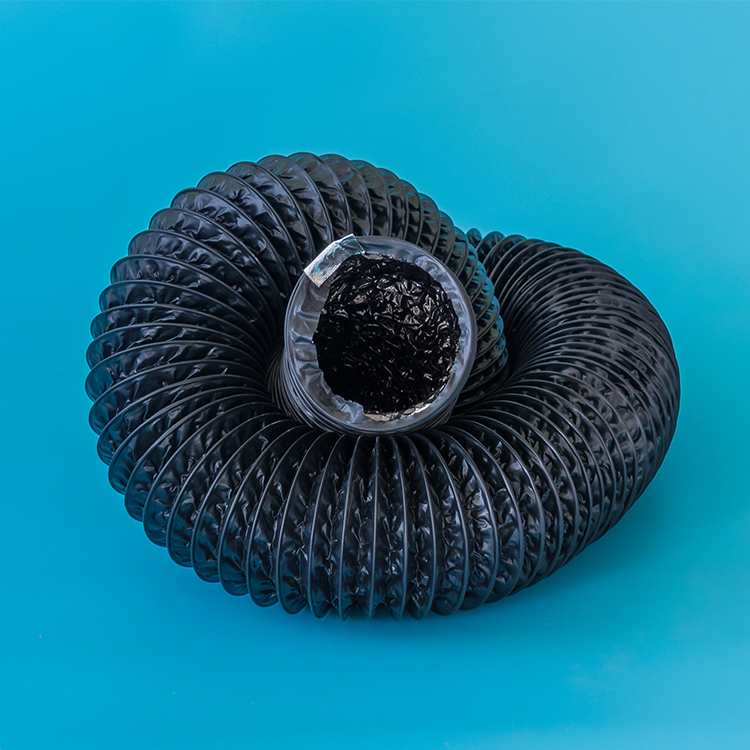

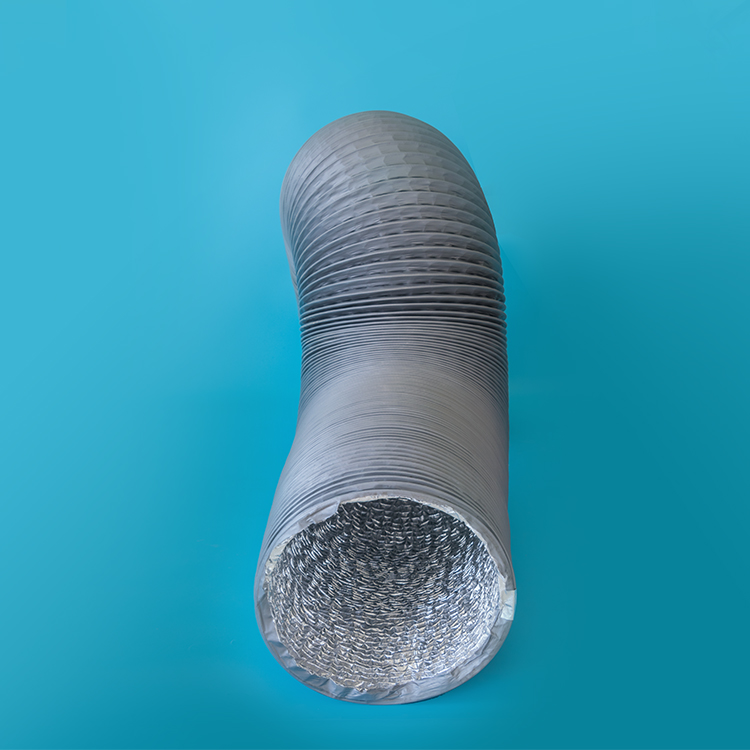

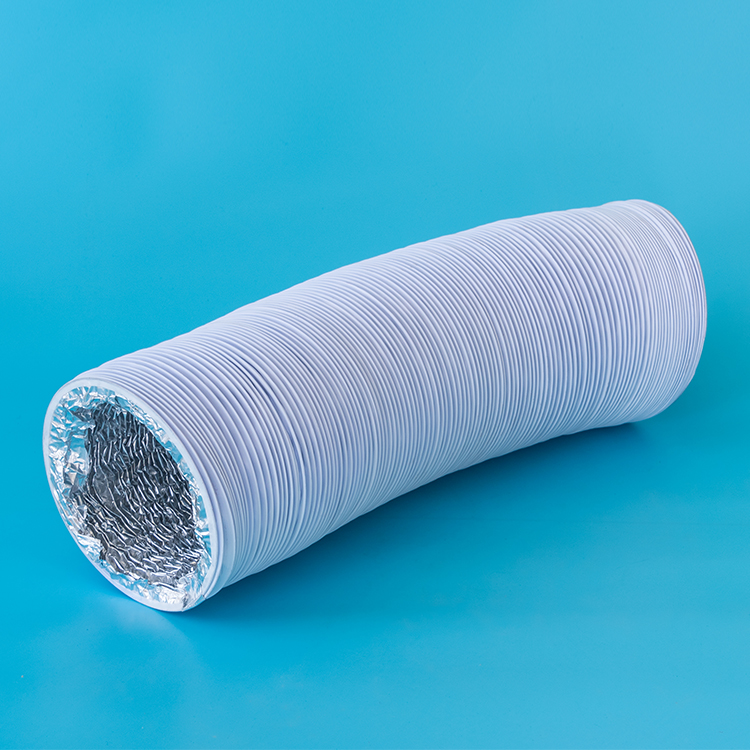

Double Layers Combi PVC Aluminum Flexible Duct
雙面PVC鋁箔復合軟管
|
Product Code |
XY-202 |
產品編碼 |
XY-202 |
|
Construction |
2 Aluminum Foil + 1 PET+1PVC film |
材料 |
2層鋁箔+1層PET+1層PVC |
|

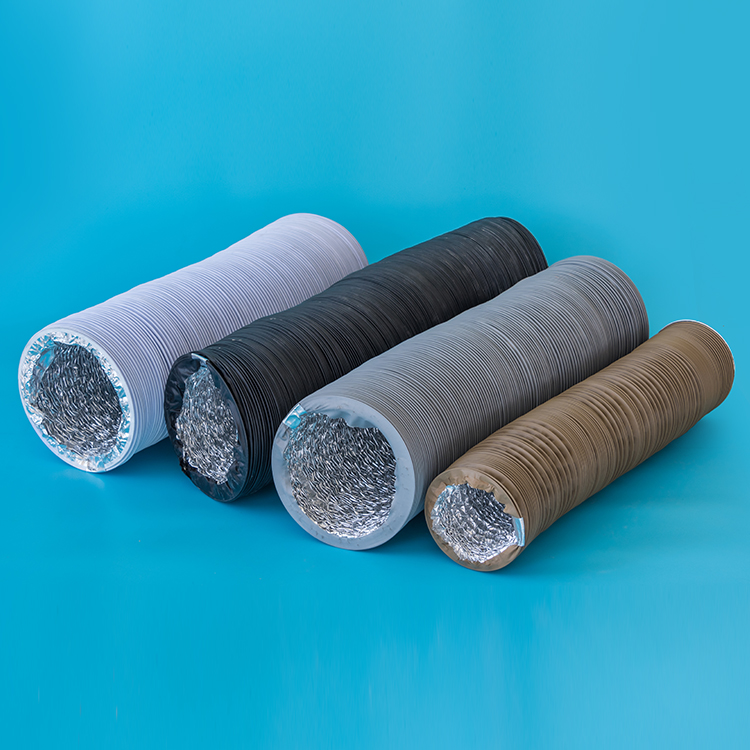

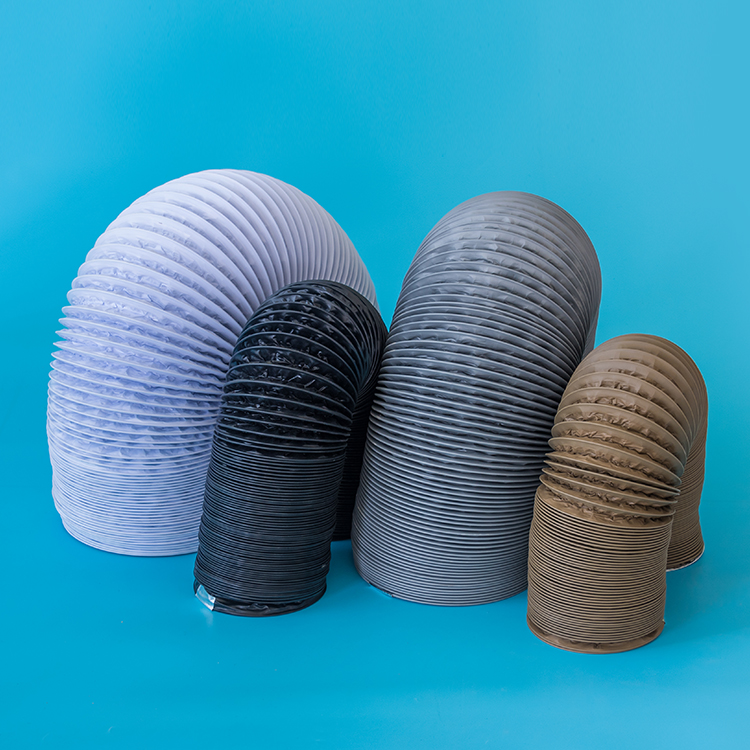

Color |
White/Black/Grey/Brown |
顏色 |
白/黑/灰/棕 |
|
AvailableDiameter |
40mm-650mm (1.5"-25") |
直徑范圍 |
40mm-650mm (1.5"-25") |
|
Carbon Steel Wire Diameter |
0.6mm-2.5mm |
鋼絲直徑 |
0.6mm-2.5mm |
|
StandardLength |
10m(Max) |
標準長度 |
10m(Max) |
|
Thickness |
0.132mm-0.135mm |
厚度 |
0.132mm-0.135mm |
|
Fire Resistance |
Limited Combustibility(Fire Will Out Within 3 Seconds) |
防火等級 |
阻燃（離開火焰3秒內熄滅） |
|
CompressRatio |
1: 25 |
壓縮比 |
1：25 |
|
Temperature Range |
-30℃/+150℃ |
溫度范圍 |
-30℃/+150℃ |
|
Operating Pressure |
3000Pa |
最大壓力 |
3000Pa |
|
Maximum Air Velocity |
最大風速 |
30m/s |
PVC鋁箔復合軟管是在鋁箔伸縮軟管外覆增強PVC阻燃膜制作而成，拉直后自持性好，阻力較小，清潔衛生，不污染所通氣體，強度高，不易損壞。適用于高、中、低壓的空調通風系統，各種排氣系統及工礦企業除塵系統等。
Combi PVC Aluminum Flexible duct covered with 100 micron PVC foil.
High strength, not easy to be broken.
Ideal for using in general purpose exhaust applications.
